Model: D1
Frequency: 125Khz/13.56Mhz
Interface: Wiegand26/34
Support cards: TK4001EM4100 etc./Mifare one( S50, S70 etc.)
Introduction: It is a 125Khz/13.56Mhz contactless access control reader, preclude the use of advanced RF receiver circuit design and embedded micro-controller, combined with efficient decoding algorithms. It has received high sensitivity, current, single DC power supply, low price, high performance characteristics. Dust, moisture, fully sealed design allows users to install the outdoor and other harsh conditions, no mechanical wear and durability.
- D1-D
- D1-C
- Pictures
- Line definition
| Item | Parameters |
| Frequency | 125Khz |
| Operating Voltage | DC 9V-16V |
| Consumed Current | 0-100mA |
| Support cards | TK4001\EM4100 etc. |
| Read Range | 0mm-100mm (related to the card or the environment) |
| reader interval | ＜0.5S |
| Format | Wiegand 26/Wiegand 34 (Setting by yourself) |
| Distance of transmission | WG26/34≥100M |
| Service Temperature | -25℃ ~ +75℃ |
| Size | 114mm×76mm×16mm |
| Weight | About 190G |
| Lead Length | 180mm±5mm |
| Material | ABS & Resin adhesive （it’s waterproof） |
| Status Indication | 1PC LED (Red means standby, Green means reader success) |
| Item | Parameters |
| Frequency | 13.56Mhz |
| Operating Voltage | DC 9V-16V |
| Consumed Current | 0-100mA |
| Support cards | Mifare one( S50, S70 etc.) |
| Read Range | 0mm-100mm (related to the card or the environment) |
| reader interval | ＜0.5S |
| Format | Wiegand 26/Wiegand 34 (Setting by yourself) |
| Distance of transmission | WG26/34≥100M |
| Service Temperature | -25℃ ~ +75℃ |
| Size | 114mm×76mm×16mm |
| Weight | About 190G |
| Lead Length | 180mm±5mm |
| Material | ABS & Resin adhesive （it’s waterproof） |
| Status Indication | 1PC LED (Red means standby, Green means reader success) |

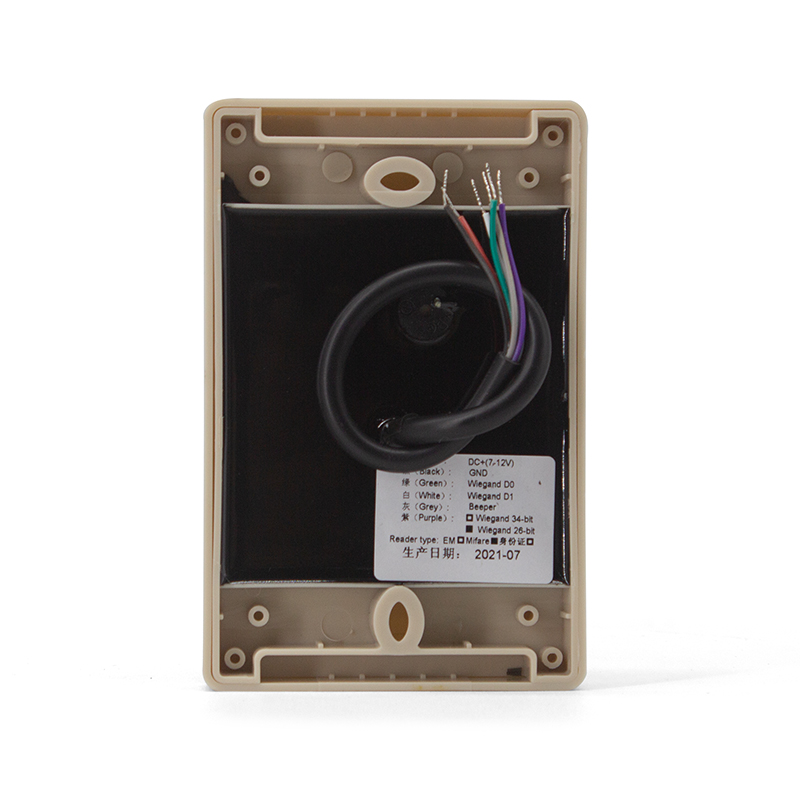

- Red： VCC（9V-16V）
- Black： GND
- White： Wiegand D1
- Green： Wiegand D0
- Grey： Green light and buzzer long ring
- Purple：Wiegand 26/Wiegand 34(The output format is WG34 when purple line connect with black line)
