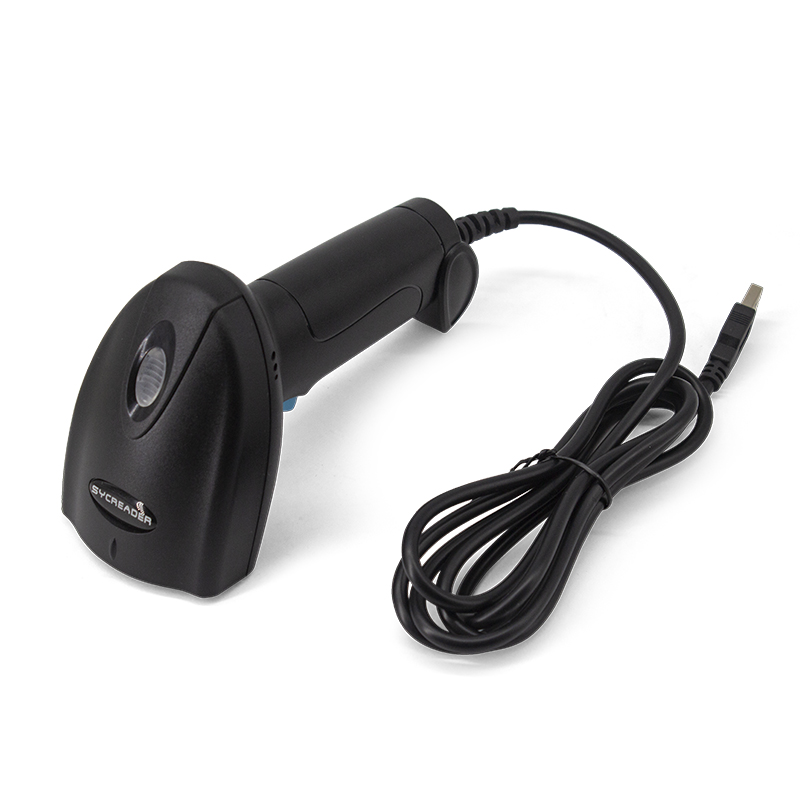

Model: U1
Scale pattern: Laser
Interface: USB wired
Introduction: Universal handheld 1Dbarcode scanner, using the world's most advanced photoelectring technology, with two-way communication instant error correction feedback, to complete a variety of commonly used one-dimensional code reading. Can be used in different lighting environments, the applicability is strong. Read faster and operate more efficiently. Supports the reading of paper barcodes, anti-color barcodes, and non-standard barcodes such as printing distortion and broken folds.
- Parameters
- Dimensions
- Downloads
| Technical parameters | |
| The type of light source | Visual laser diode with a wavelength of 650nm |
| Scan mode | Single-line scanning |
| Scan speed | 2 ± 200 times per second |
| Scan accuracy | 0.10mm（pcs0.9） |
| The width of the scan | 30mm@ the scanner window, 220mm@200mm |
| Scan depth of view | 0-250mm (0.33mm. PCS 90%) |
| Corner. | 30° |
| Elevation. | 65° |
| Angle. | 55° |
| Decoding capability | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China post code, etc. |
| The interface is supported | Printer USB connector |
| Print contrast | A minimum reflection difference of 30%. |
| Error rate | 1/ 50 million |
| How to prompt | Buzzer INDICATOR |
| How to scan | Manual always-on self-sensing |
| Physical parameters | |
| Form factor | Length× width × height: 165mm × 66mm × 95mm |
| Weight. | 180g |
| Material. | ABS+PC |
| Cable standard | Line: 1.65m |
| Electrical parameters | |
| Voltage. | 5V |
| The working current | 85mA |
| Static current | 36mA |
| Laser safety | In line with the national secondary laser safety standards |
| Electromagnetic compatibility | CE & FCC DOC compliance |
| Environment parameters | |
| Operating temperature | 0°C -45°C |
| Storage temperature | -20°C -60°C |
| Humidity. | Relative humidity 5%-95% (no condensation) |
| Ambient brightness | Max.5,000 Lux (fluorescence) |
| Seismic capacity | Can withstand 1.5m drops in the air |
